Ceiling hook for aerial objects

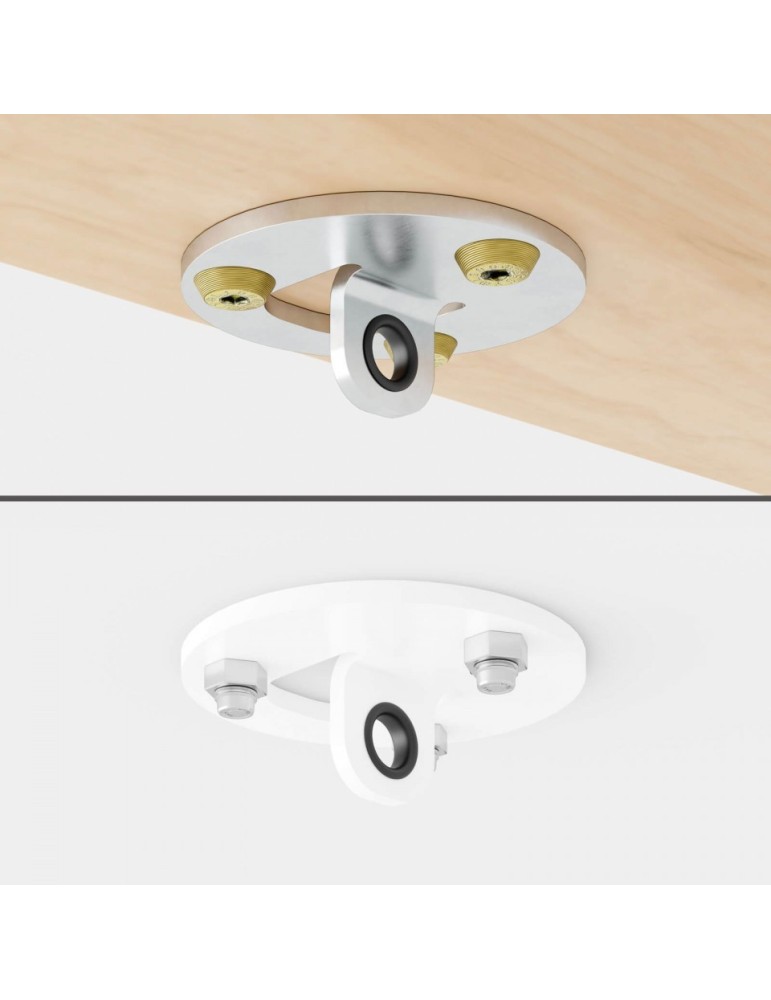

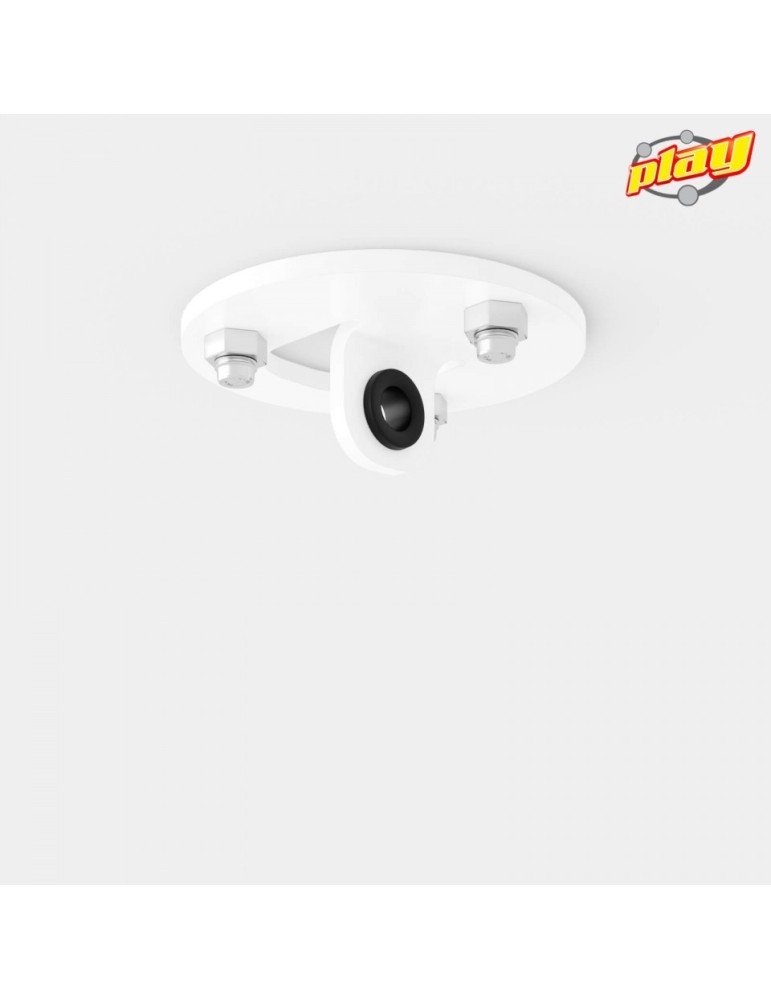

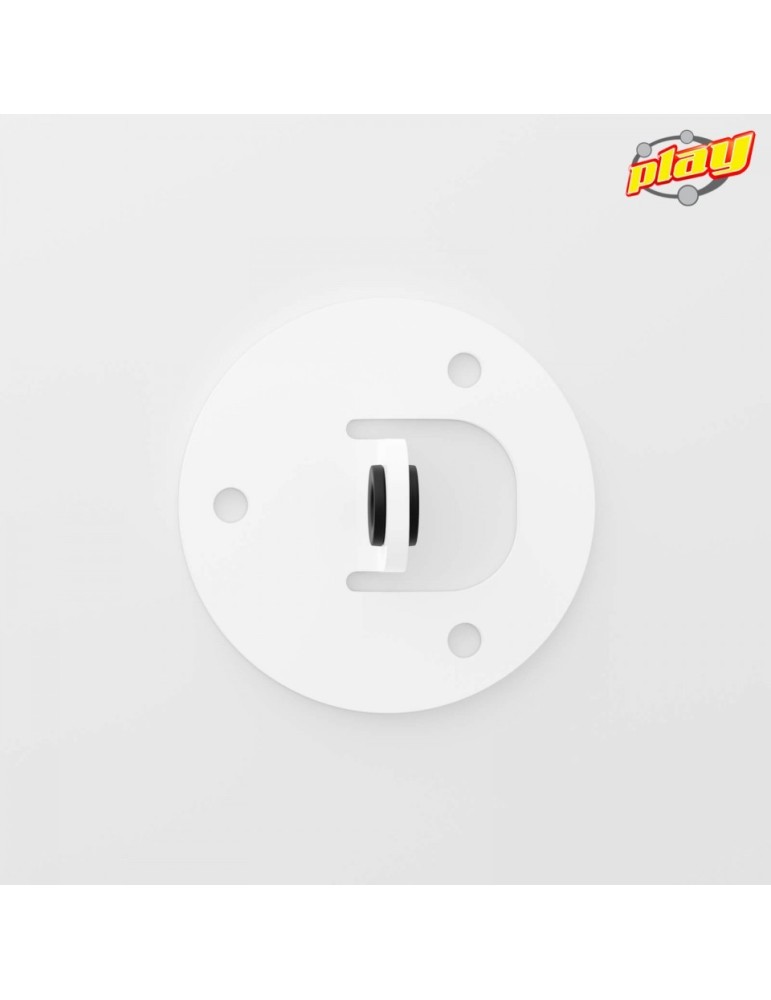

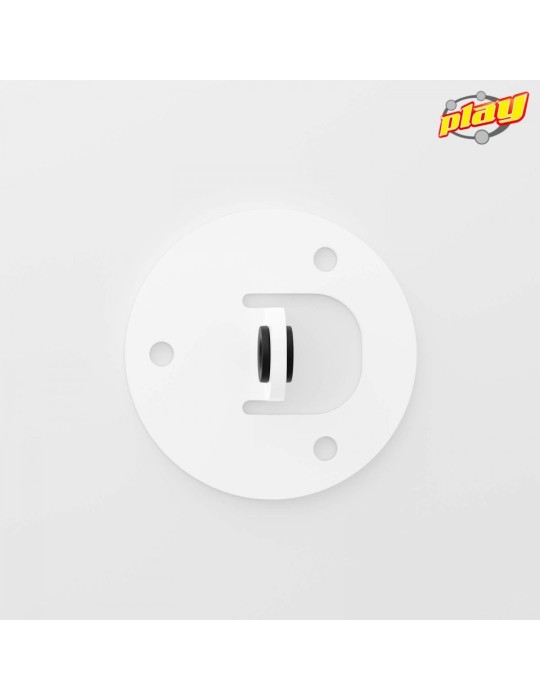

Creating a safe and reliable anchor point is essential: dynamic figures in aerial acrobatics can generate a traction load of up to 10 times the athlete's body weight. With a 12 cm diameter and a hole spacing of less than 10 cm, this robust plate is ideal for home installation on concrete joists or wooden beams.

Its eyelet with a silicone sleeve protects the equipment against wear and ensures full compatibility with carabiners, quick links, and swivels.

Included (Choice at ordering):

- 3 certified anti-seismic anchors for concrete (10 mm drilling).

- 3 self-drilling screws 8x100 mm for wooden beams.

Mechanical Strength & Safety Data:

The overall strength of your setup is determined by the weakest link in the chain. You should therefore always refer to the values of the fixings used:

- Plate only : BLL 30 kN (≈ 3000 kg) | WLL 400 kg | Safety factor 7.

- Fixing on concrete (3 anchors) : BLL 18 kN (≈ 1800 kg) | WLL 250 kg | Safety factor 7.

- Fixing on wood (3 screws) : BLL 15 kN (≈ 1500 kg) | WLL 200 kg | Safety factor 7.

Installation Advice:

Always have the structure of your ceiling or beam evaluated by a qualified professional before installation. Position the plate, securely tighten the appropriate fixings, and thoroughly check the stability of the entire setup before any use.

⚠️ WARNING : Strictly reserved for suspended aerial acrobatics. Do not use for swinging (risk of premature wear on the silicone protector).

Technical Specifications :

- Material : Galvanized steel, 6 mm thick (seamless).

- Plate diameter : 12 cm (hole spacing < 10 cm).

- Eyelet protection : Anti-wear silicone sleeve.

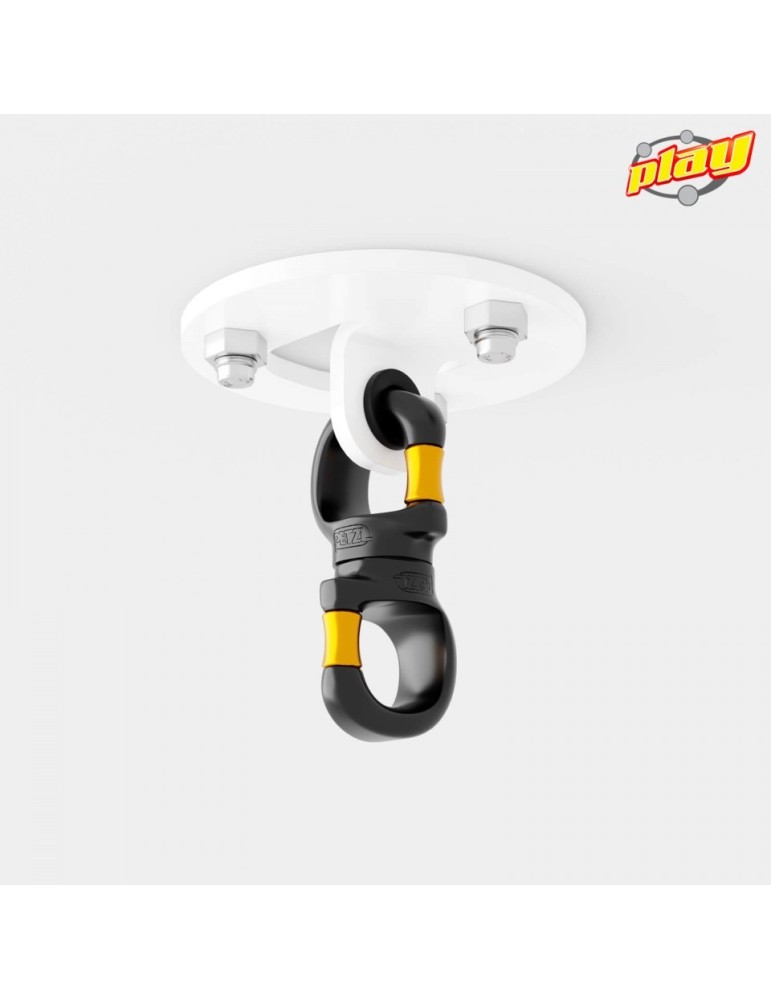

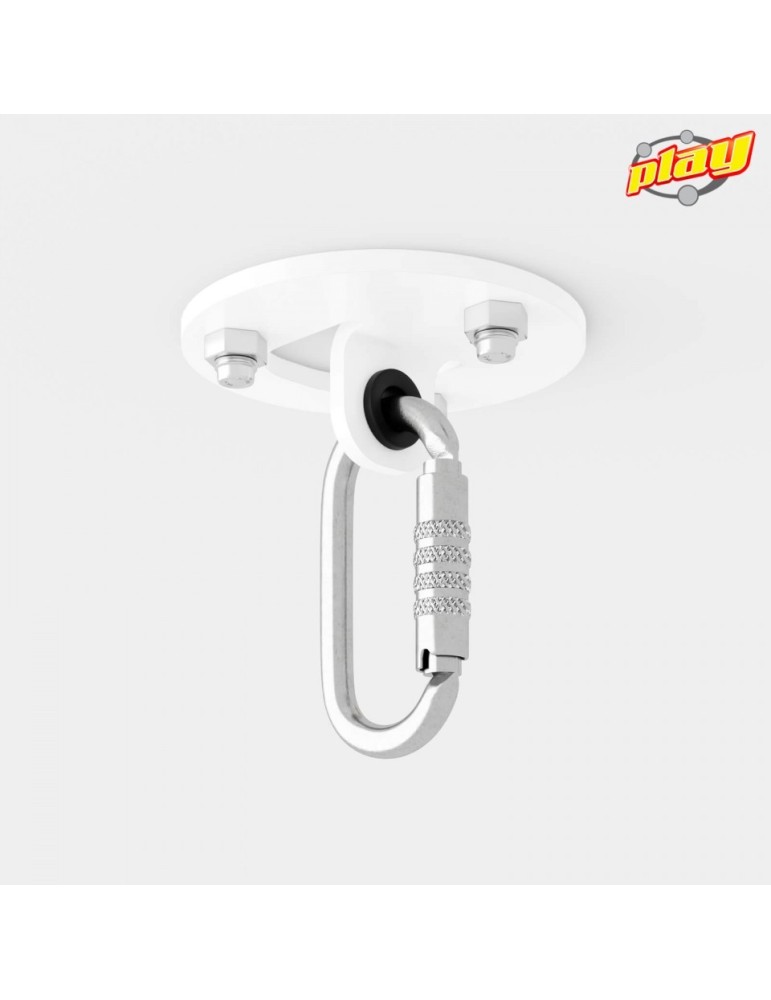

- Compatibility : Silks, hoops, trapezes, ropes, carabiners, swivels.

- Fixing option : 3 concrete anchors or 3 wood screws included.

INSTALLATION AND USER GUIDE (in French, English, German, Italian, and Spanish)
